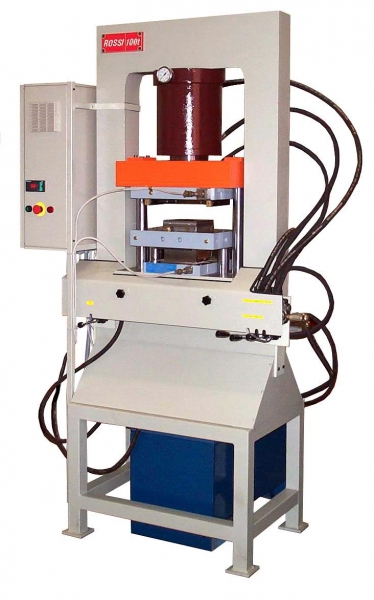

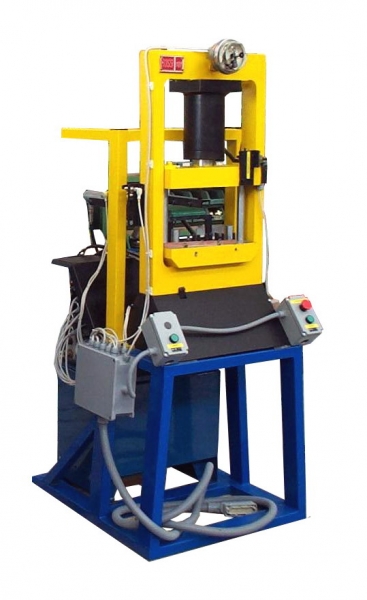

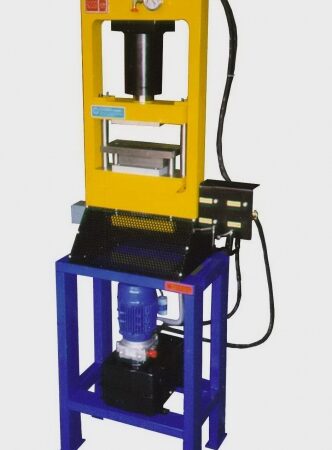

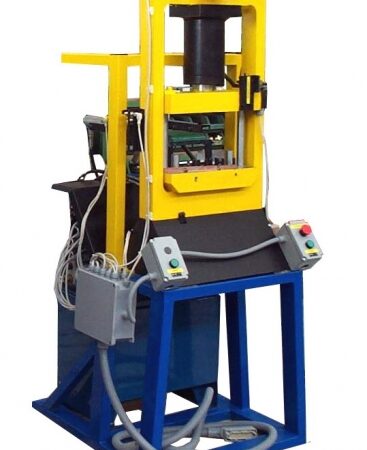

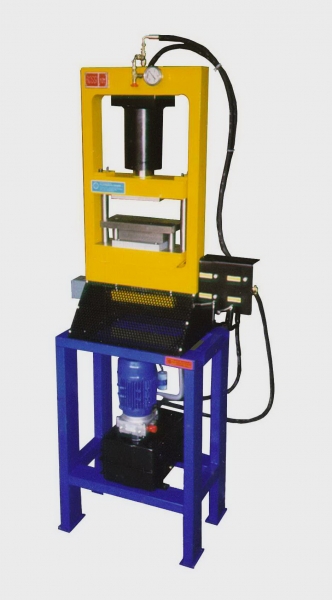

ceramica – PRESSA ROSSI 10T-30T-50T-100T

The ROSSI 10-30-50 and 100t presses have been designed for the production of very small ceramic pieces and laboratory samples for testing purposes.

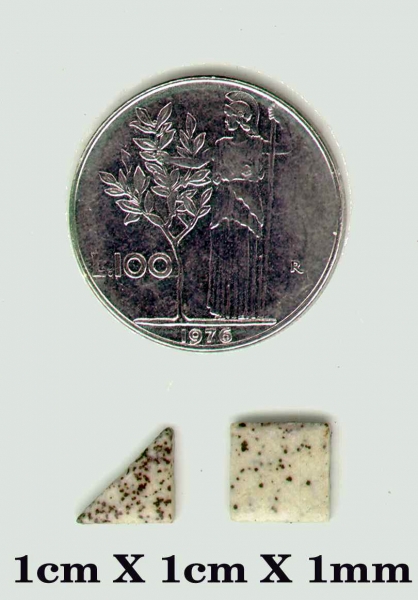

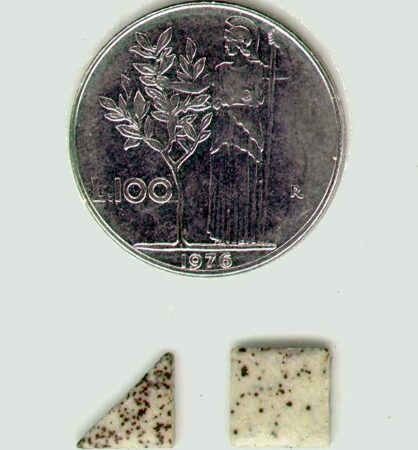

The press is composed of a monolithic structure with a perfect guidance of crossbeam and ejection rods. The movement of the crossbeam is independent from the structure and it’s well guided on the bench so that it’s possible to press small size tiles (1×1 cm, 1 mm thickness) with multiple cavities moulds, with an extremely high precision.

All the movements are controlled by means of hand-operated throttles for an easy functioning.

The press can be completed with a feeding device which allows to fill the mould cavities automatically. The oleodynamic unit, integrated in the lower structure, is very compact and the noise level is very low for laboratory installation.

Technical features (10t version):

Max pressing force10.000 Kgf
Max extraction force:1.500 Kgf
Free space between the columns (span):310 mm
Free space between crosspiece and table plate:200 mm
Max stroke of crosspiece:120 mm
Max stroke extraction:80 mm
Installed electrical power:1,0 kW
Max oil pressure in the main cylinder:140 bar
Dimension:0,8/2,2/0,6 m
